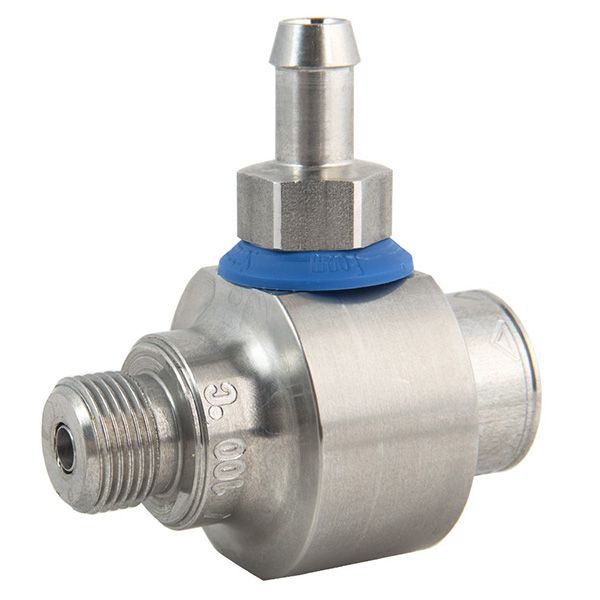

The Suttner ST160 Injector is used for applying chemicals to a surface.

This injector (also known as a venturi) draws chemical into the water stream when the water blaster is switched over into low pressure.

These injectors are used in many industries for industrial cleaning including house washing, agriculture, automotive and the food processing industry.

RM Suttner designs and manufactures these chemical injectors in Germany.

Please contact us with your machine specs to determine which size is suitable for your pressure washer.

Specifications

• Venturi orifice size: 1.8 – 2.3 available
• Inlet: 3/8″ F
• Outlet: 3/8″ M
• Hose tail 9 mm
• Max. 350 bar / 90°C
• Adjustable metering: The chemical dosing is adjusted by 8 exchangeable nozzle inserts (0.5 – 1.5 mm). Sold separately
