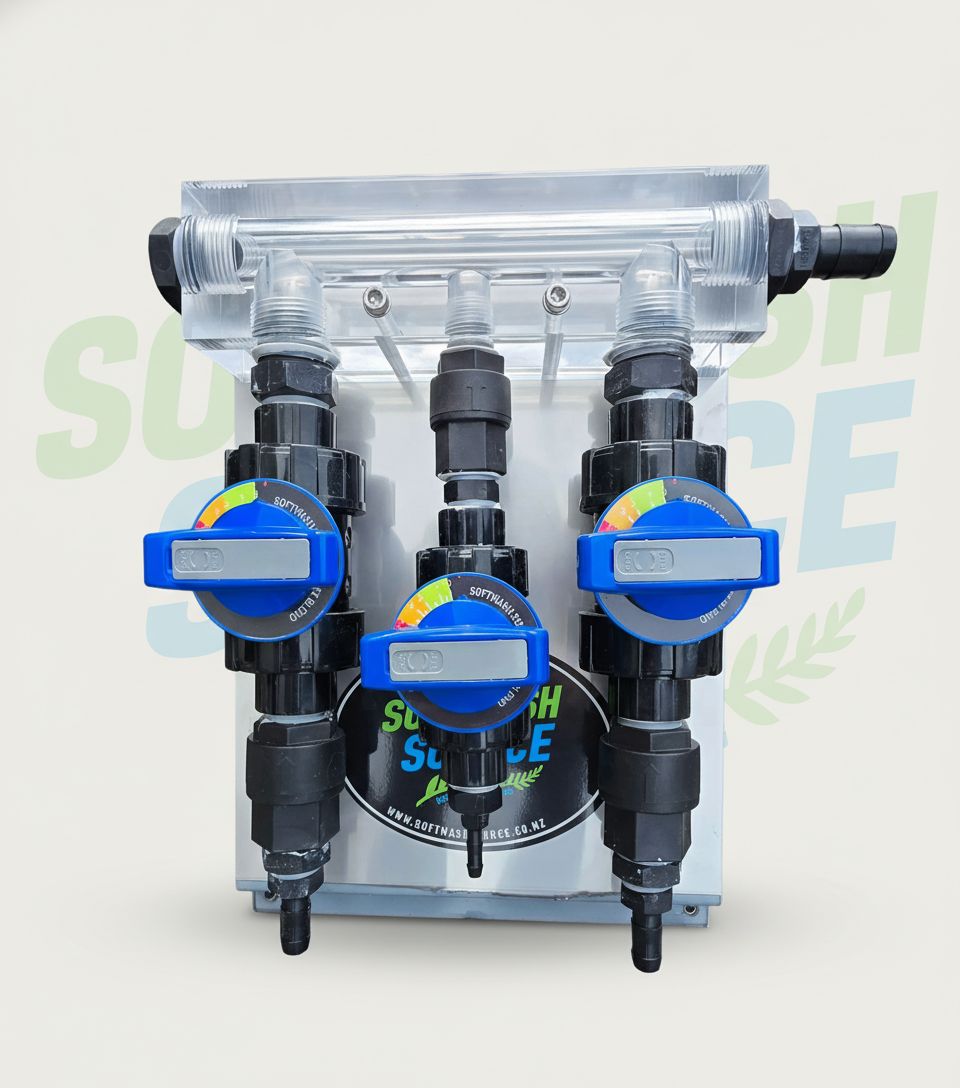

Maxx Blend Manifold

Commonly known as a proportioner which I believe to be the original softwash blend manifold brand.

The Maxx Blend manifold is assembled right here in New Zealand with quality Hansen polypropylene fittings and comes complete with clear Manifold for easier diagnosing of air leaks in your soft wash system.

Comes with 2 x 3/4" metering valves and 1/3psi cracking pressure check valves for hypo and water with 1/2" hose tails. 1 x 1/2" metering valve and check valve for soap with 1/4" hose tail. 3/4" hose tail outlet to pump.

Also available with 1" metering valves and different outlets/bypass for larger soft wash systems. (at extra cost)

All mounted on a stainless mounting plate.

These are made to order and can either have an elbow or straight hose tail on outlet. Contact us to discuss before purchase.

You can also add a valve and camlock fitting to the blocked end to add another suction line for various uses such as using the onboard 12v pump to transfer hypo from ground to your hypo tank.
